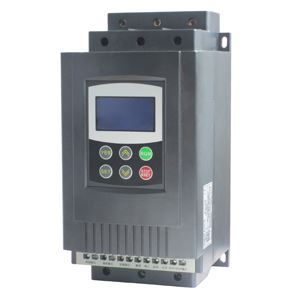

10 hp (7.5 kW) Soft starter, 220v/380v/480v/690v protección de motores
10 hp (7.5 kW) Soft starter, 220v/380v/480v/690v protección de motores
Precio habitual
$ 23,699.00 MXN
Precio habitual
Precio de oferta
$ 23,699.00 MXN
Precio unitario
por
10 hp motor soft starter, 7.5 kW three phase 220v, 380v, 480v, 690v.
Model | GS2-7d5 (220v), GS3-7d5 (380v), GS4-7d5 (480v), GS6-7d5 (690v). | ||
Capacity | 10 hp (7.5 kw) | ||
Current | 15 amps at 380/480v, 30 amps at 220v | ||
Weight | 5 kgs | ||
Dimension | 270*146*160 mm | ||
Input | Voltage | Three-phase 220v, 380v, 480v, 690v AC | |
Frequency | 50Hz/ 60Hz | ||
Adaptive Motor | Squirrel-cage three-phase asynchronous motor | ||
Starting Times | It is recommended not to exceed 20 times per hour. | ||
Communication | DB9 interface, male plug, ① is RS485+, ⑥ is RS485- | ||
Control Mode | (1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation. | ||
Start Mode | (1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start. | ||
Stop Mode | (1) Soft stop. (2) Free stop. | ||
Protective Function | (1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) Starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting of the soft starter. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14) Incorrect wiring protection of external control stop terminals. | ||
Ambient | Place to be used | Indoor location with good ventilation free from corrosive gas and conductive dust. | |
Altitude | Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M. | ||
Temperature | -30 +55 oC | ||
Humidity | 90%RH without dew condensation. | ||
Vibration | <0.5G | ||
Structure | Enclosure | IP 20 | |
Cooling | Natural wind cooling. |
-
