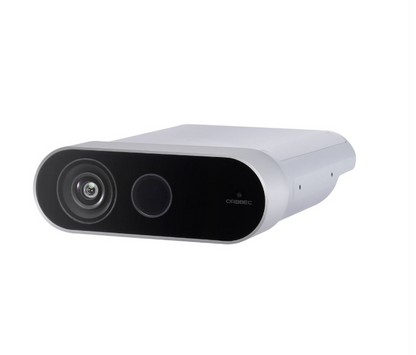

FEMTO MEGA ORBBEC CAMARA CON NVIDIA® Jetson NANO PROCESADOR

roduct Name

Femto Mega

Certifications

Class 1, FCC, RoHS 2.0, CE

Accuracy

< 11 mm + 0.1% distance

Depth FOV

NFoV unbinned & binned: H 75° V 65°
WFoV unbinned & binned: H 120° V 120°

RGB FOV

H 80° V 51° D 89°

RGB Resolution Framerate

3840x2160 @Up to 25 FPS
1920x1080 @Up to 30 FPS

Depth Resolution Framerate

WFOV unbinned 1024x1024 @Up to 15 FPS
WFOV 2x2 binned 512x512 @Up to 30 FPS
NFOV unbinned 640x576 @Up to 30 FPS
NFOV 2x2 binned 320x288 @Up to 30 FPS

Range

WFOV unbinned 0.5-3.86m
WFOV 2x2 binned 0.5-5.46m
NFOV unbinned 0.25-2.88m
NFOV 2x2 binned 0.25-2.21m

Processor

Nvidia Jetson Nano

Operating Systems

Windows/ Linux

SDK

Orbbec SDK

Temperature

10-25°C

Data Transfer

USB 3.0 Ethernet

Average Power Consumption

DC: 11W
POE: 13W

IMU

6DoF

Sync

8-Pin Connector

Power Supply

USB Type C;
Power Adapter 5V/3A;
PoE
