Jetson Xavier NX module AI development kit + NVIDIA Jetson Xavier NX core module for smart machines

Jetson Xavier NX module AI development kit + NVIDIA Jetson Xavier NX core module for smart machines

$ 61,500.00 MXN
$ 61,500.00 MXN
Oferta Agotado
Impuesto incluido.
Specification
Supplier Type

Jetson Xavier NX module AI development kit + NVIDIA Jetson Xavier NX core module for smart machines



AI Algorithm Application
Algorithm
Algorithm A
Passenger flow density
Algorithm B
Passenger flow statistics
Algorithm C
Smoke recognition
Algorithm D

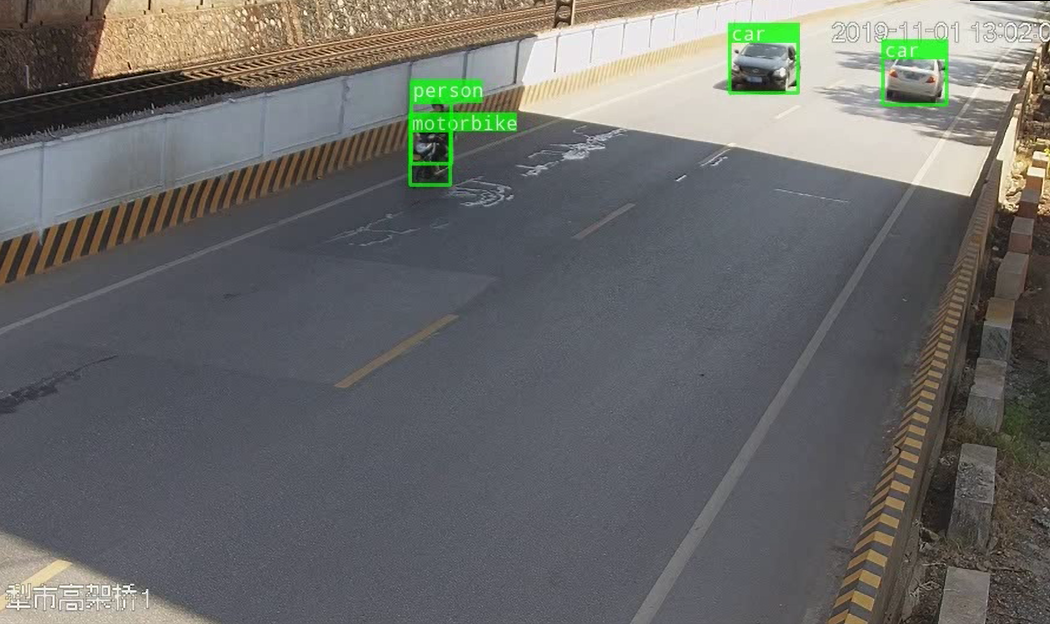

Road detection
All Algorithm
All of above
● Smoke Recognition
● Road Vehicle Recognition
● Engineering Vehicle Identification
● Hard Hat Recognition
● Safety Clothing Identification
● Color + Quantity Recognition
Product Paramenters
Jetson NX Box
Processor
NVIDIA Jetson Xavier NX
AI Performance
21TOPS/6TFLOPS
CPU
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
GPU
384-core NVIDIA VoltaTM GPU with 48 Tensor Cores
Memory
8 GB 128-bit LPDDR4x @ 1600 MHz 51.2GB/s
Storage
16 GB eMMC 5.1
Video Encode
2*4K @ 30 (HEVC)
6*1080p @ 60 (HEVC)
Video Decode
2*4K @ 60 (HEVC)
12*1080p @ 60 (HEVC)
32*1080p @ 30 (HEVC)
I/O Configuration
Gigabit Ethernet *2
CAN *1
RS232/422/485 *1
GPIO*4
MIPI(CSI) *2
USB3.0 *2
30- pin I/O x 1 (GPIO/I2S/I2C/Audio/SPI/UART)
User Expansion
Optional:①Mini-PCIE*1 ②M.2 E-Key 2230 * 1 for WiFi
M.2 M key 2280 NVME （PCIE）
M.2 B-KEY for LTE/5G
Nano SIM Socket *1
TF Slot *1
Function Key
Recovery Button *1 Power Button*1
Power Requirement
12-24Vdc
Size(WxHxD)
189*96.7*57.5mm
Net Weight
1.2Kg
Protection
IP50
Environmental
Operating Temperature
-20°C ~ 75°C
Storage Temperature
-40°C ~ 70°C
Humidity
5~95% @ 40°C, non-condensing
Operation Vibration
3 Grms 5~500Hz
Certificates
CCC/ROSH/SRRC
