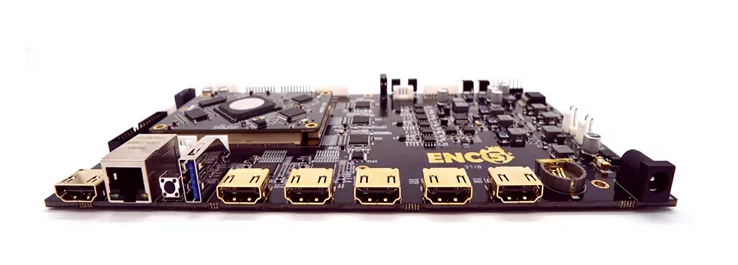

Link Pi ENC5 Evaluation board Hisilicon Hi3531DV100 /NDI Encoder Decoder HD smartP AVBR/RTMP/Live Broadcast
Link Pi ENC5 Evaluation board Hisilicon Hi3531DV100 /NDI Encoder Decoder HD smartP AVBR/RTMP/Live Broadcast
Precio habitual
$ 38,399.00 MXN
Precio habitual
Precio de oferta
$ 38,399.00 MXN
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
- Consulta disponibilidad previo a tu compra
- Envíos a todo México
- Emitimos Factura IVA Incluido
Cantidad
No se pudo cargar la disponibilidad de retiro
Link Pi ENC5 Evaluation board Hisilicon Hi3531DV100 /NDI Encoder Decoder HD smartP AVBR/RTMP/Live Broadcast
Core performance
| main chip: | Hi3531DV100 |
| CPU: | ARM Cortex A9 dual core @1.4GHz |
| RAM: | 2GB DDR3 |
| Flash: | 256MB Nand Flash |
input interface
| - | HD-MI×5 supports up to 4K@30 with audio |
Output Interface
| - | Front HD-MI×1 supports 4K |
| - | Built-in VGA pin × 1 support 1080P |
Codec performance
| - | 8×1080P@30+8×D1@30 h264/h265 encoding |
| - | 2×4K@30+2×1080P@30 h264/h265 encoding |
| - | 8×1080P@30 or 2×4K@30 h264/h265 decoding |
| - | 4×1080P@30 mjpeg encoding/decoding |
| - | Support H264+ (intelligent multi-reference frame, AVBR) |
| - | Maximum bit rate 40Mbps |
other
| The internet: | Gigabit wired network |
| storage: | SATA×1 |
| Audio: | Audio board dedicated expansion interface |
| MCU: | STM32F103RBT |
| Pin: | GPIO, PWM, UART, I2C, SPI, USB, I2S/PCM |
| other: | Button×3, USB3.0×1 |
| power supply: | DC12V, typical power consumption 15W, maximum power consumption 30W, it is recommended to use 12V5A |
