NanoVNA Antenna Analyzer USB Based Full 2-Port 100kHz-6GHz Vector Network Analyz

Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab
Brand LibreVNA
MPN WU1173
Network Analyzer Type Vector
Model LibreVNA 100kHz--6GHz

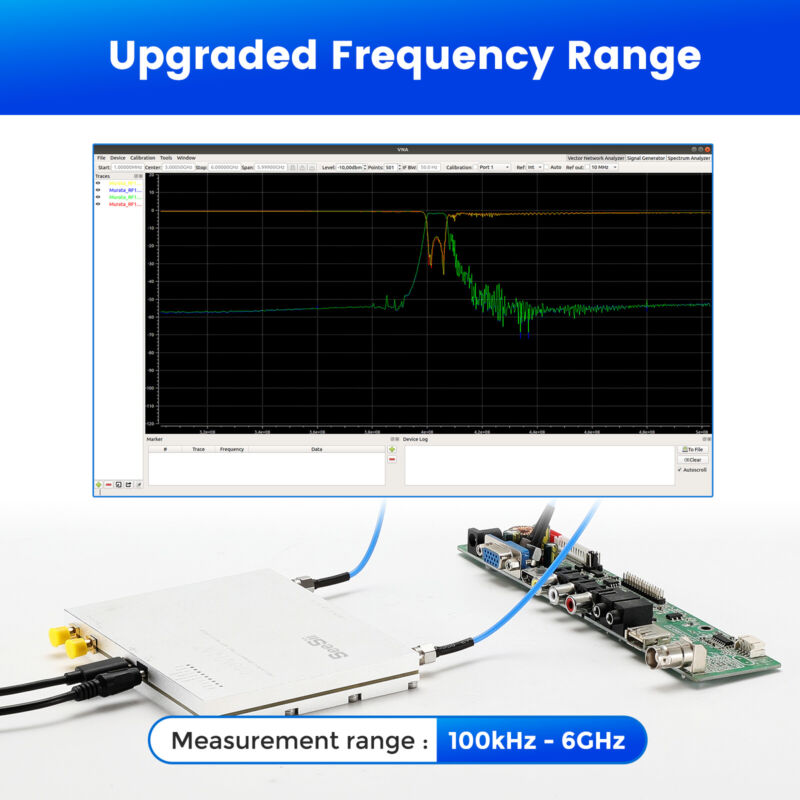

Frequency Range 100kHz-6GHz
Impedance 50Ω

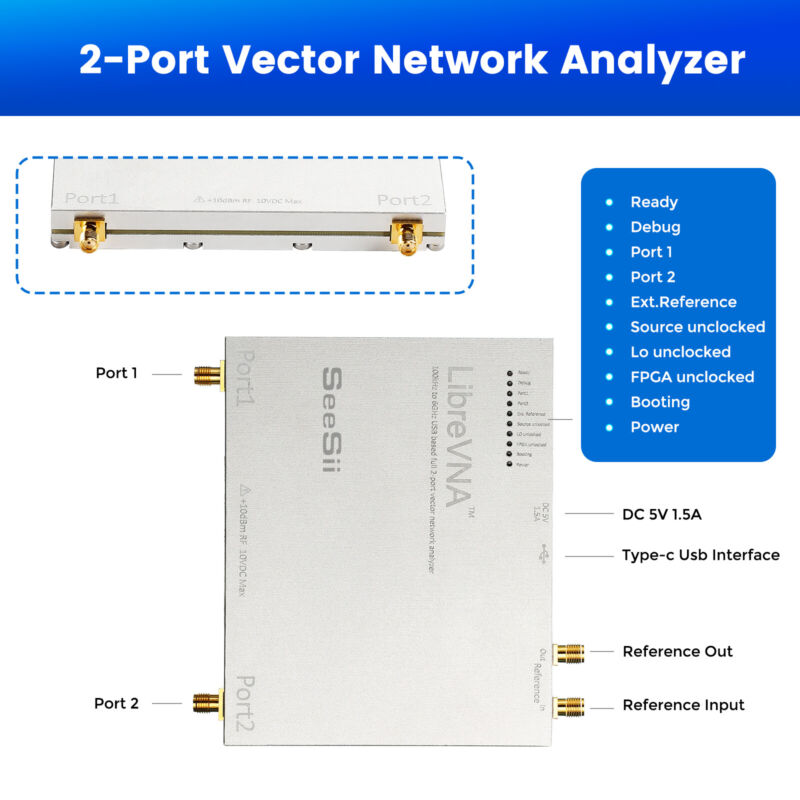

Test Port Connector SMA, female
Number of Test Port 2
Frequency Accuracy <2ppm
Number of Measurement Points 2 to 4501
Speed 2-port - 4000 pts <500ms (IFBW=50 kHz )
Measurement Bandwidths 10Hz to 50kHz
Dynamic range (IFBW 10Hz) > 95 dB to 3GHz > 50 dB to 6 GHz (Note 1)

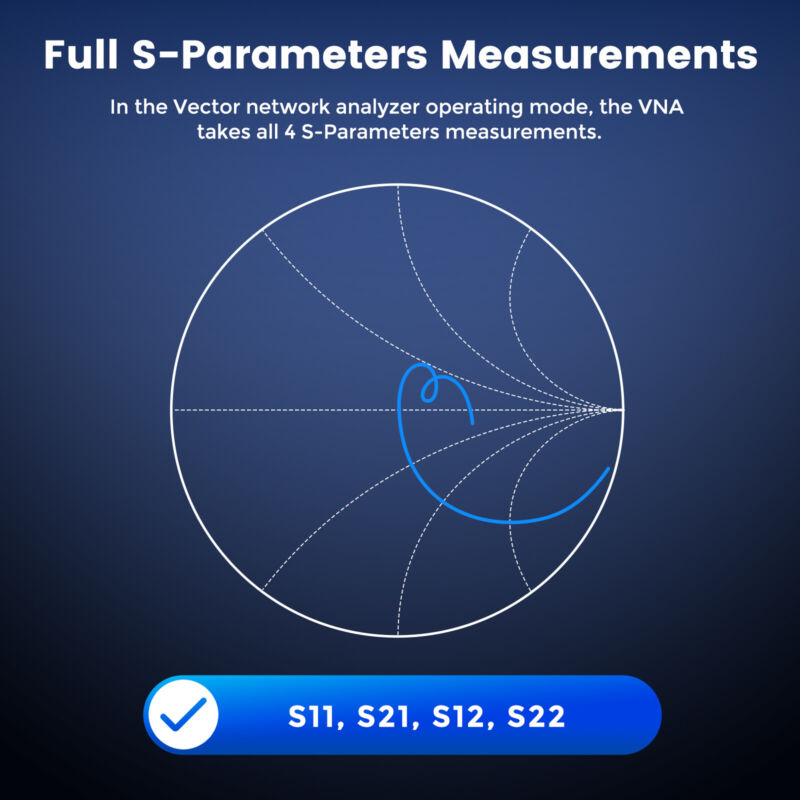

Measurement parameters S11, S21, S12, S22
Reflection directivity > 40 dB (after calibration) (Note 2)
Output power -40 dBm to 0 dBm (Note 3)
Power Supply DC 5V, 1.5A(USB powered, or 3.5mm connector)

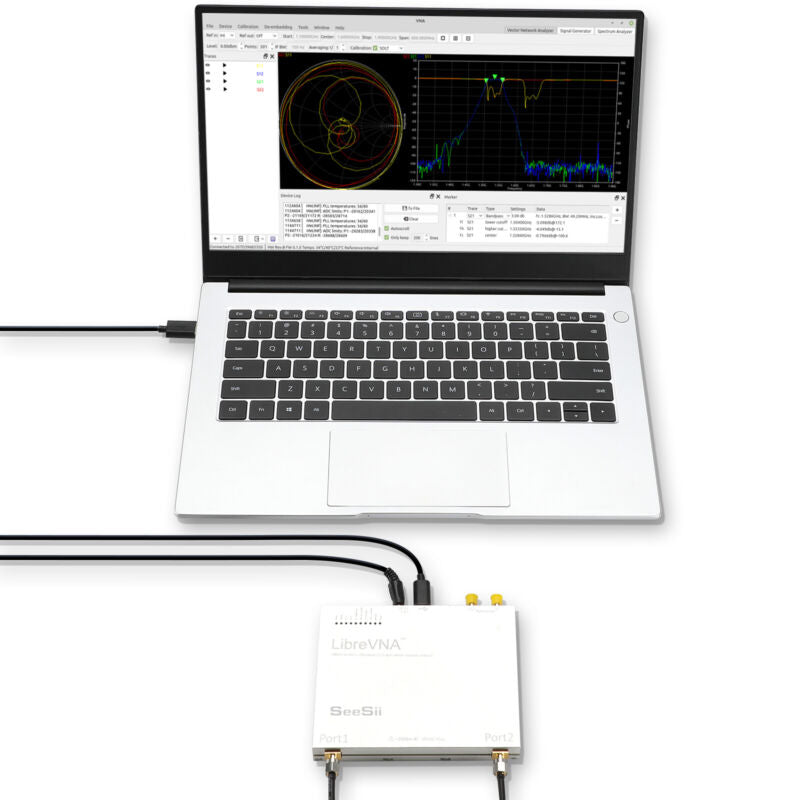

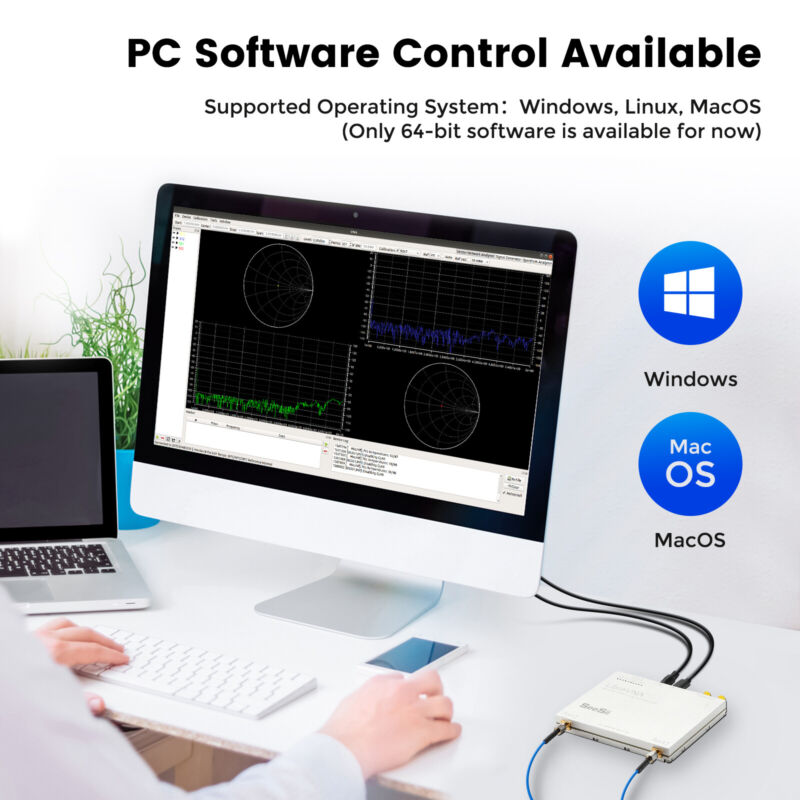

Supported Operating System Windows, Linux, MacOS. (Only 64-bit software is available
UPC 6933834847555
